This SO-1280 battery is primary, non-rechargeable lithium sulphur dioxide, engineered and designed for use in a world wide tactical environment, and is manufactured to meet and exceed Indian military standard JSS-55555 and ISO-9000 methods and procedures. This battery meets the requirements of JSS 6135-01:2013 and MIL-PRF-49471B with reference to MIL-STD-810E.
Typical Applications

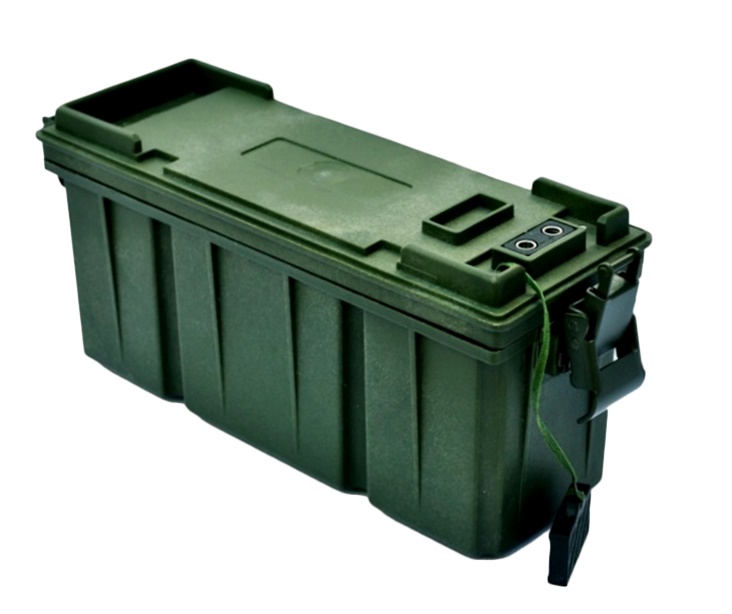

Model : SO-1280
| Part number: | SO-1280 |
| Chemistry | Lithium Sulphur Dioxide |
| Nominal Voltage (V) | 15.0 |
| Nominal Capacity (mAh) | 8000 |
| Nominal Energy (WH) | 120 WH |
| Max. Discharge current (A) | 1.0A |
| Max. Discharge power (W) | 15.0W |
| Max. Charging Voltage (V) | 15.25 |
| Max. Charging Current (A) | 3.0A for 10 sec. |
| Visual state of charge indicator | NO |
| Communication | NO |
| Data System | NO |
| Operating Temperature, Charge | -20°C to +55°C |
| Operating Temperature, Discharge | -20°C to +55°C |
| Operating Temperature, Storage | -20°C to +55°C |
| Recommended Storage Temperature | +20°C to +40°C |
| Brand | SES |
| Housing: | Plastic, UL-94 V-0 |
| Length (maximum): | 259.0 mm |
| Width (maximum): | 89.0 mm |
| Height (maximum): | 117.0 mm |
| Recommended cavity cross section: | 260.0 x 90.0 mm |
| Weight (typical): | 1.2 Kg ± 0.05 Kg |
| Colour: | Olive drab / Black |
| Connector: | 2-Way Female Floating Socket |
| Over charge protection: | Yes |
| Over discharge protection: | Yes |
| Over current protection: | Yes |
| Over temperature protection: | Yes |
| Cell balancing function: | Yes |
| Short-circuit protection: | Yes |
| Reverse polarity protection: | Yes |
| EMI protection: | Yes |
| ESD protection: | Yes |
| ISO 9001:2015 certified | Yes |
| ISO 13485:2016 certified: | Yes |
| Material Safety Data Sheet: | Yes |
| CE compliant: | Yes |
| UN 38.3 certified: | Yes |
| BIS 16046:2015 certified | Yes |
| IEC 62133:2012 certified | Yes |
| UL 2054 certified: | Custom option (contact us) |
| MIL-STD-810E compliant: | Custom option (contact us) |
| MIL-STD-461C compliant: | Custom option (contact us) |
| JSS-55555 compliant: | Custom option (contact us) |
