HE-342-2560, 25.9V 60AH


Key Features
  • Rugged military tough case
  • Durable High Impact Plastic
  • High energy density cells
  • MIL Grade Circular connector
  • High performance battery

Applications
  • Rugged portable electronics
  • Surveillance equipment
  • Remote control electronics
  • Portable Manpack Power pack
  • Hybrid Vehicle
  • Storage Energy, Power bank
  • Robotics & Motorized loads

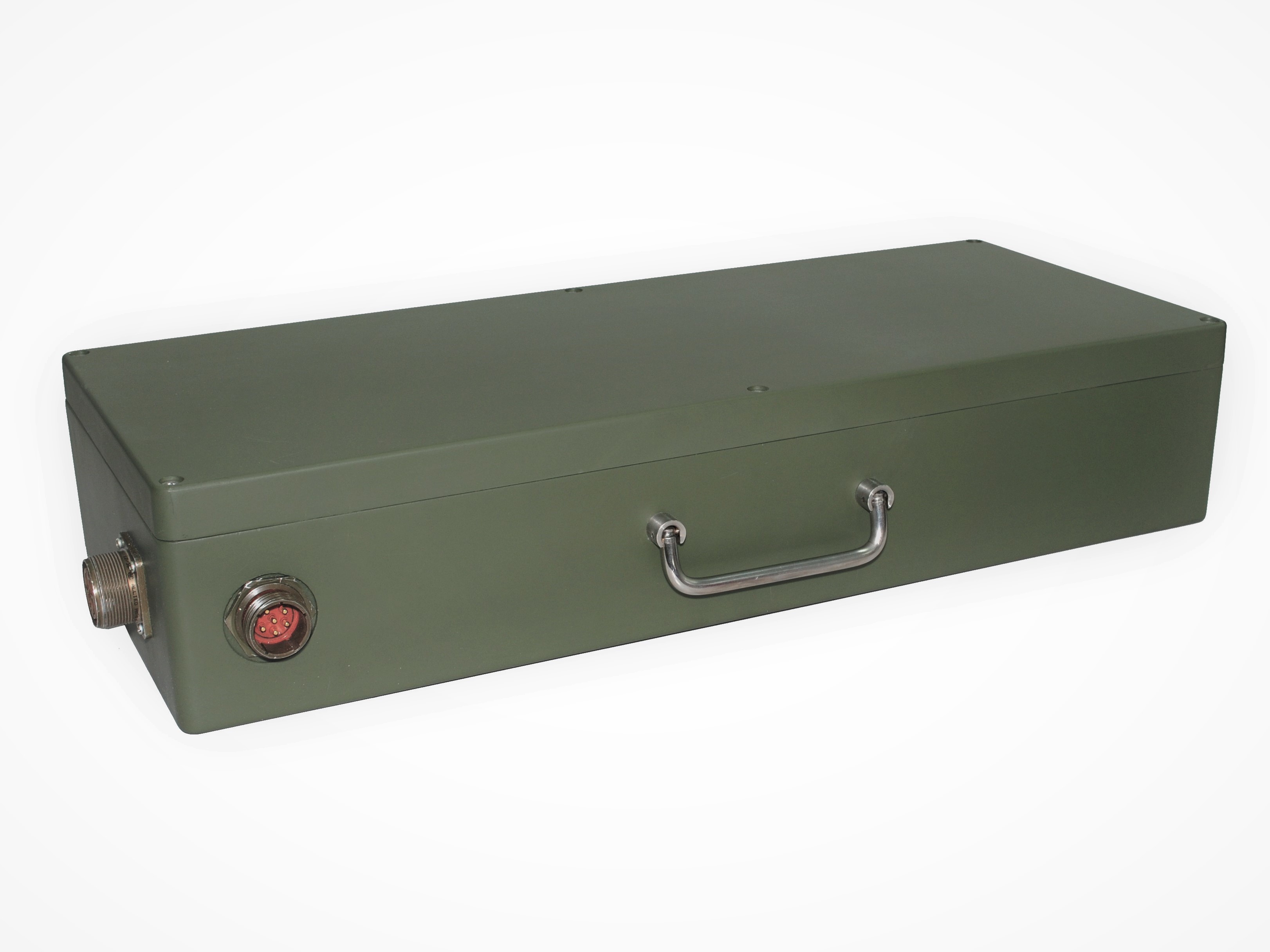

Model : HE-342-2560

Specifications


Part number:HE-342-2560
Chemistry Lithium Ion (Li-Ion)
Nominal Voltage (V)25.9
Nominal Capacity (mAh)60000
Nominal Energy (WH)1554.0 WH
Max. Discharge current (A)60.0 A
Max. Discharge power (W)1554.0 W
Max. Charging Voltage (V)29.4V
Max. Charging Current (A)15.0 A
Visual state of charge indicatorNo
CommunicationNo
Data SystemNo
Operating Temperature, Charge-30°C to +55°
Operating Temperature, Discharge-30°C to +55°C
Operating Temperature, Storage-30°C to +55°C
Recommended Storage Temperature-20°C to +40°C
BrandSES
Housing:MIL Grade Rugged Plastic
Length (maximum):630.0 mm
Width (maximum):280.0 mm
Height (maximum):121.0 mm
Recommended cavity cross section:631.0 x 281.0 mm
Weight (typical):16.5 Kg
Colour:Olive drab / Black
Connector:MIL Circular, Amphenol/ Glenair
Over charge protection:Yes
Over discharge protection:Yes
Over current protection:Yes
Over temperature protection:Yes
Cell balancing function:No
Short-circuit protection:Yes
Reverse polarity protection:Yes
EMI protection:Yes
ESD protection:Yes
ISO 9001:2015 certifiedYes
ISO 13485:2016 certified:Yes
Material Safety Data Sheet:Yes
CE compliant:Yes
UN 38.3 certified:Custom option (contact us)
BIS 16046:2015 certifiedYes
IEC 62133:2012 certifiedCustom option (contact us)
UL 2054 certified:Custom option (contact us)
MIL-STD-810E compliant:Custom option (contact us)
MIL-STD-461C compliant:Custom option (contact us)
JSS-55555 compliant:Yes
