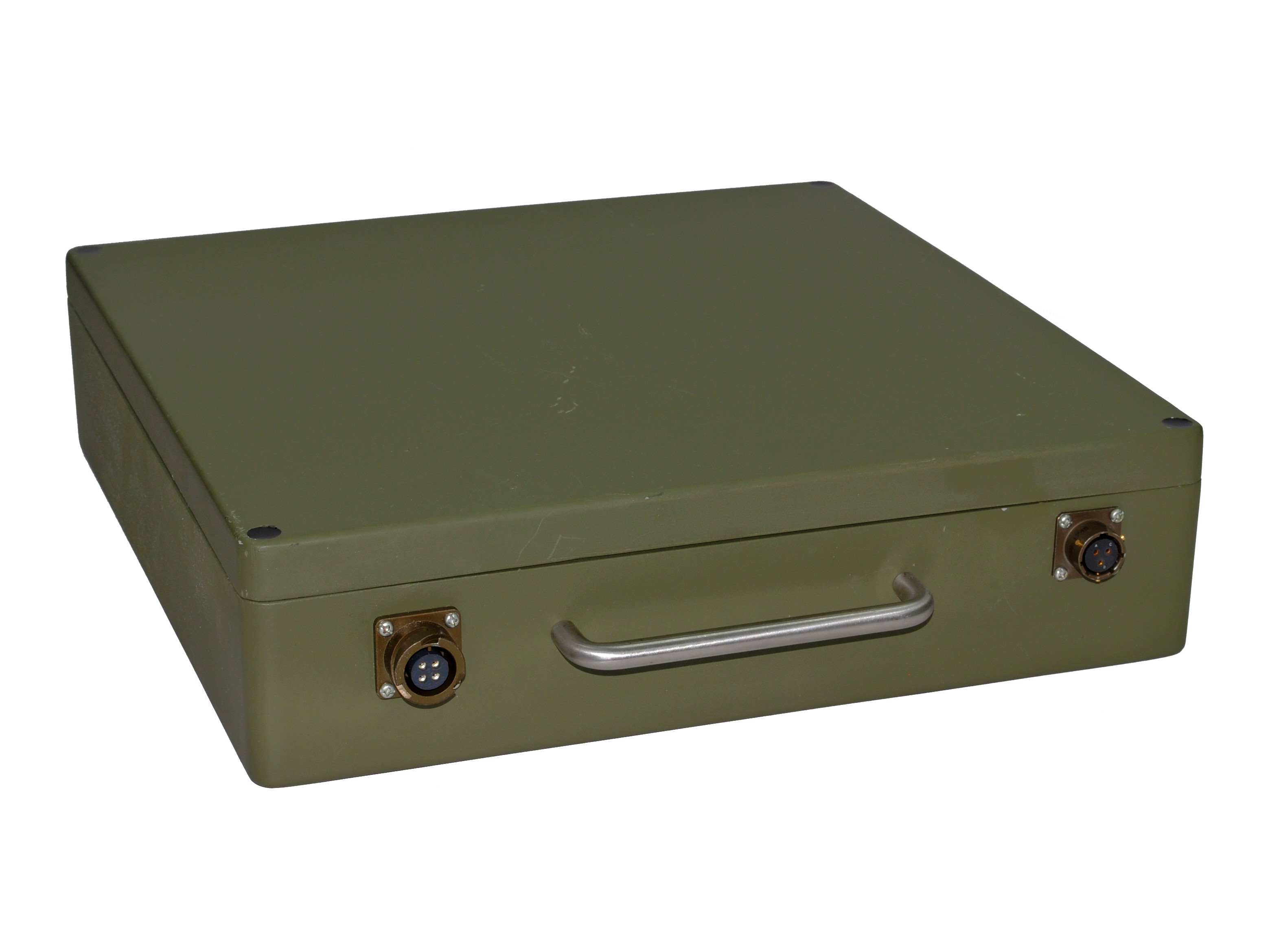

HE-339-11240, 11.1V 240AH


Key Features
  • Rugged military tough case
  • Durable High Impact Plastic
  • High energy density cells
  • MIL Grade Circular connector
  • High performance battery

Applications
  • Rugged portable electronics
  • Surveillance equipment
  • Remote control electronics
  • Portable Manpack Power pack
  • Hybrid Vehicle
  • Storage Energy, Power bank
  • Robotics & Motorized loads

Model : HE-339-11240

Specifications


Part number:HE-339-11240
Chemistry Lithium Ion (Li-Ion)
Nominal Voltage (V)11.1
Nominal Capacity (mAh)240000
Nominal Energy (WH)2664
Max. Discharge current (A)100.0 A
Max. Discharge power (W)2664
Max. Charging Voltage (V)12.6 V
Max. Charging Current (A)50 A
Visual state of charge indicatorNo
CommunicationNo
Data SystemNo
Operating Temperature, Charge-30°C to +55°
Operating Temperature, Discharge-30°C to +55°C
Operating Temperature, Storage-30°C to +55°C
Recommended Storage Temperature-20°C to +40°C
BrandSES
Housing:MIL Grade Rugged Plastic
Length (maximum):390 mm
Width (maximum):360 mm
Height (maximum):90 mm
Recommended cavity cross section:391 x 361
Weight (typical):20.5 Kg
Colour:Olive drab / Black
Connector:MIL Circular, Amphenol/ Glenair
Over charge protection:Yes
Over discharge protection:Yes
Over current protection:Yes
Over temperature protection:Yes
Cell balancing function:No
Short-circuit protection:Yes
Reverse polarity protection:Yes
EMI protection:Yes
ESD protection:Yes
ISO 9001:2015 certifiedYes
ISO 13485:2016 certified:Yes
Material Safety Data Sheet:Yes
CE compliant:Yes
UN 38.3 certified:Custom option (contact us)
BIS 16046:2015 certifiedYes
IEC 62133:2012 certifiedCustom option (contact us)
UL 2054 certified:Custom option (contact us)
MIL-STD-810E compliant:Custom option (contact us)
MIL-STD-461C compliant:Custom option (contact us)
JSS-55555 compliant:Yes
