HE-333-1160, 11.1V 60AH


Key Features
  • Rugged military tough case
  • Durable High Impact Plastic
  • High energy density cells
  • MIL Grade Circular connector
  • High performance battery

Applications
  • Rugged portable electronics
  • Surveillance equipment
  • Remote control electronics
  • Portable Manpack Power pack
  • Hybrid Vehicle
  • Storage Energy, Power bank
  • Robotics & Motorized loads

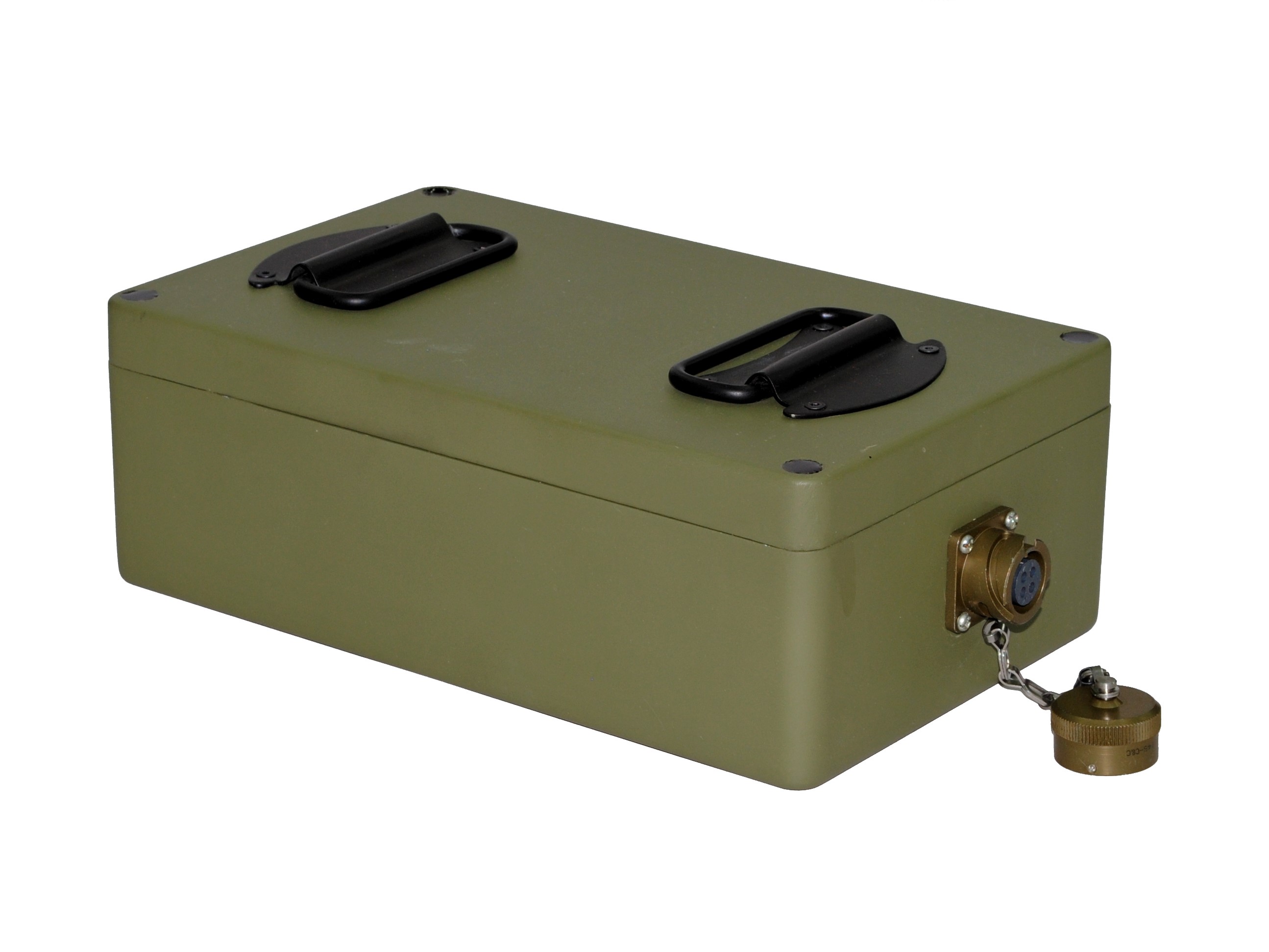

Model : HE-333-1160

Specifications


Part number:HE-333-1160
Chemistry Lithium Ion (Li-Ion)
Nominal Voltage (V)11.1
Nominal Capacity (mAh)60000
Nominal Energy (WH)666.0 WH
Max. Discharge current (A)60.0 A
Max. Discharge power (W)666.0 W
Max. Charging Voltage (V)12.6V
Max. Charging Current (A)15.0 A
Visual state of charge indicatorOptional, 5 Segment, LED
CommunicationOptional, SMBus v1.1
Data SystemOptional, SBS v1.1
Operating Temperature, Charge-20°C to +55°C
Operating Temperature, Discharge-20°C to +55°C
Operating Temperature, Storage-20°C to +55°C
Recommended Storage Temperature+15°C to +25°C
BrandSES
Housing: FR, Glass Reinforced Thermoplastic
Length (maximum):290.0 mm
Width (maximum):160.0 mm
Height (maximum):100.0 mm
Recommended cavity cross section:291 x 161 mm
Weight (typical):8.0Kg ± 0.5Kg
Colour:Black / Olive Green
Connector:MIL Circular / Aerospace Grade
Over charge protection:Yes
Over discharge protection:Yes
Over current protection:Yes
Over temperature protection:Yes
Cell balancing function:Yes
Short-circuit protection:Yes
Reverse polarity protection:Yes
EMI protection:Yes
ESD protection:Yes
ISO 9001:2015 certifiedYes
ISO 13485:2016 certified:Yes
Material Safety Data Sheet:Yes
CE compliant:Yes
UN 38.3 certified:Custom option (contact us)
BIS 16046:2015 certifiedCustom option (contact us)
IEC 62133:2012 certifiedCustom option (contact us)
UL 2054 certified:Custom option (contact us)
MIL-STD-810E compliant:Yes
MIL-STD-461C compliant:Yes
JSS-55555 compliant:Yes
