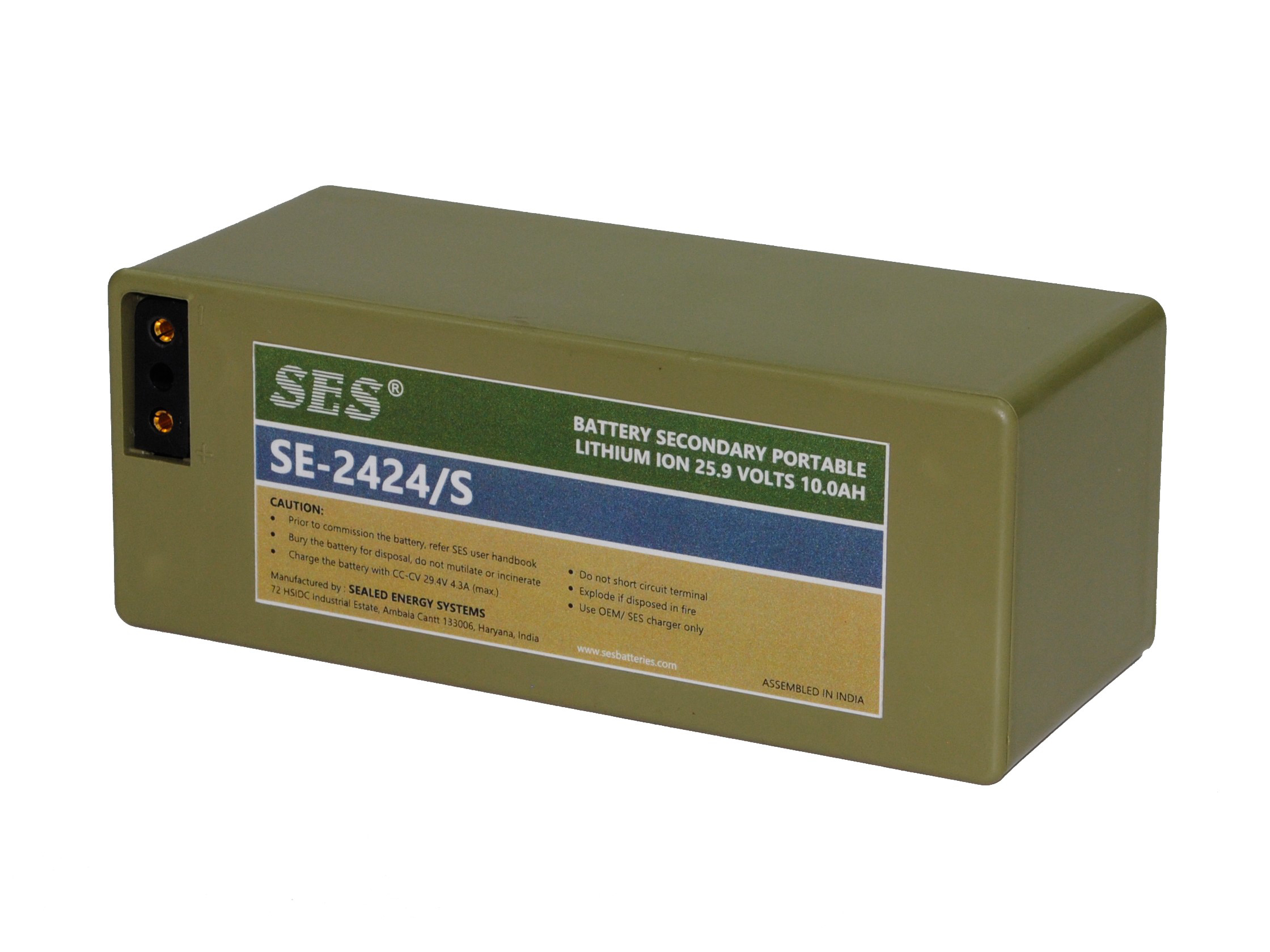

Model : SE-2424/S
Part number: | SE-2424/S |
Chemistry | Lithium Ion (Li-Ion) |
Nominal Voltage (V) | 25.2 |
Nominal Capacity (mAh) | 11400 |
Nominal Energy (WH) | 287.28WH |
Max. Discharge current (A) | 10.0A |
Max. Discharge power (W) | 252 W |
Max. Charging Voltage (V) | 29.4V |
Max. Charging Current (A) | 2.85A |
Visual state of charge indicator | Optional, 5-Segment LED |
Communication | NO |
Data System | NO |
Operating Temperature, Charge | -20°C to +55°C |
Operating Temperature, Discharge | -20°C to +55°C |
Operating Temperature, Storage | -20°C to +55°C |
Recommended Storage Temperature | +20°C to +40°C |
Brand | SES |
Housing: | ABS Plastic, UL-94 V-0 |
Length (maximum): | 187.5 mm |
Width (maximum): | 73.0 mm |
Height (maximum): | 79.0 mm |
Recommended cavity cross section: | 188.0 x 74.0 mm |
Weight (typical): | 1.60 Kg ± 0.05Kg |
Colour: | Olive drab / Black |
Connector: | 3.0 mm Floating type |
Over charge protection: | Yes |
Over discharge protection: | Yes |
Over current protection: | Yes |
Over temperature protection: | Yes |
Cell balancing function: | Yes |
Short-circuit protection: | Yes |
Reverse polarity protection: | Yes |
EMI protection: | Yes |
ESD protection: | Yes |
ISO 9001:2015 certified | Yes |
ISO 13485:2016 certified: | Yes |
Material Safety Data Sheet: | Yes |
CE compliant: | Yes |
UN 38.3 certified: | Yes |
BIS 16046:2015 certified | Yes |
IEC 62133:2012 certified | Yes |
UL 2054 certified: | Custom option (contact us) |
MIL-STD-810E compliant: | Custom option (contact us) |
MIL-STD-461C compliant: | Custom option (contact us) |
JSS-55555 compliant: | Custom option (contact us) |
